Design your garage door, and see what it costs
Choose a style, material, color and insulation level, and the door on screen redraws to match. You get an installed price range for the Lima, Ohio area before anyone comes out — and a spec you can send us in one click.
Garage Door Designer
Build your door and watch it render in real time. Every option below changes the drawing, the R-value and the estimate.
Estimated installed
$2,550 – $3,150
Start from a popular build
Pick your door size
Not sure? Measure the opening width and height in inches — we confirm it on site at no charge.
Your specification
- Size
- 16' × 7'
- Style
- Traditional Raised Panel
- Material
- Steel — Single Layer
- Color
- White
- Windows
- Plain Lites
- Hardware
- Standard Hardware
- Insulation
- Premium (R-12.9)
- R-value
- R-12.9
- 16' × 7' Traditional Raised Panel slab$1,550
- Window lites$350
- Insulation package$400
- Installation & haul-away$450
Budgeting estimate only. Your written price is confirmed after a free on-site measurement and depends on opening prep, track type, spring cycle rating and whether an opener is included.
Choosing a style for your home

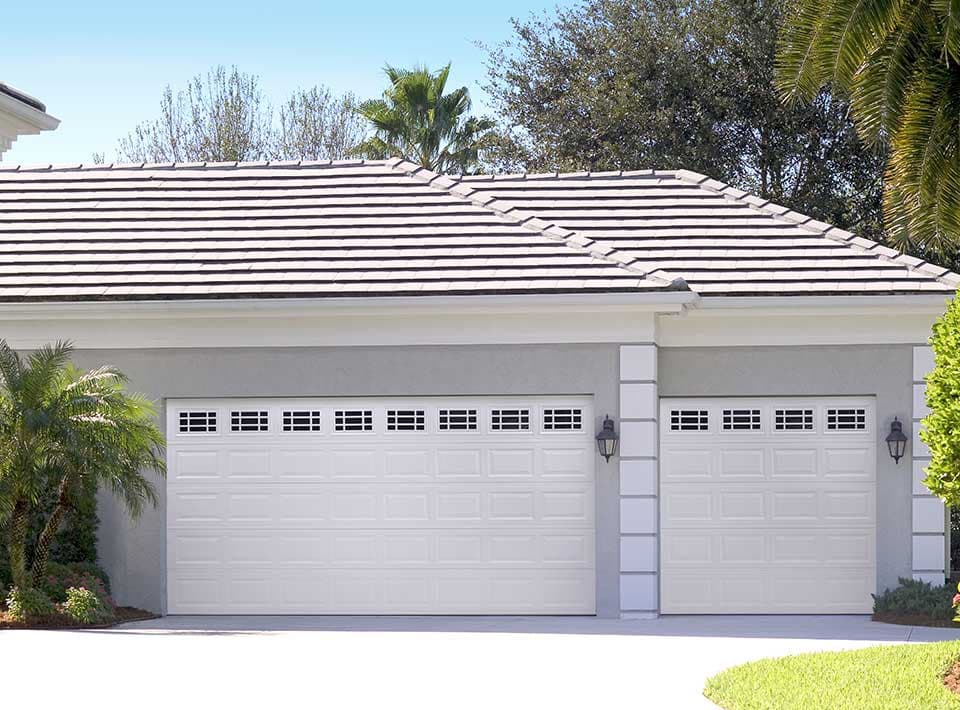

- Traditional raised panel
- The default for a reason. It suits almost every house in Lima, is the fastest to source, and is the least expensive to replace a section on later.

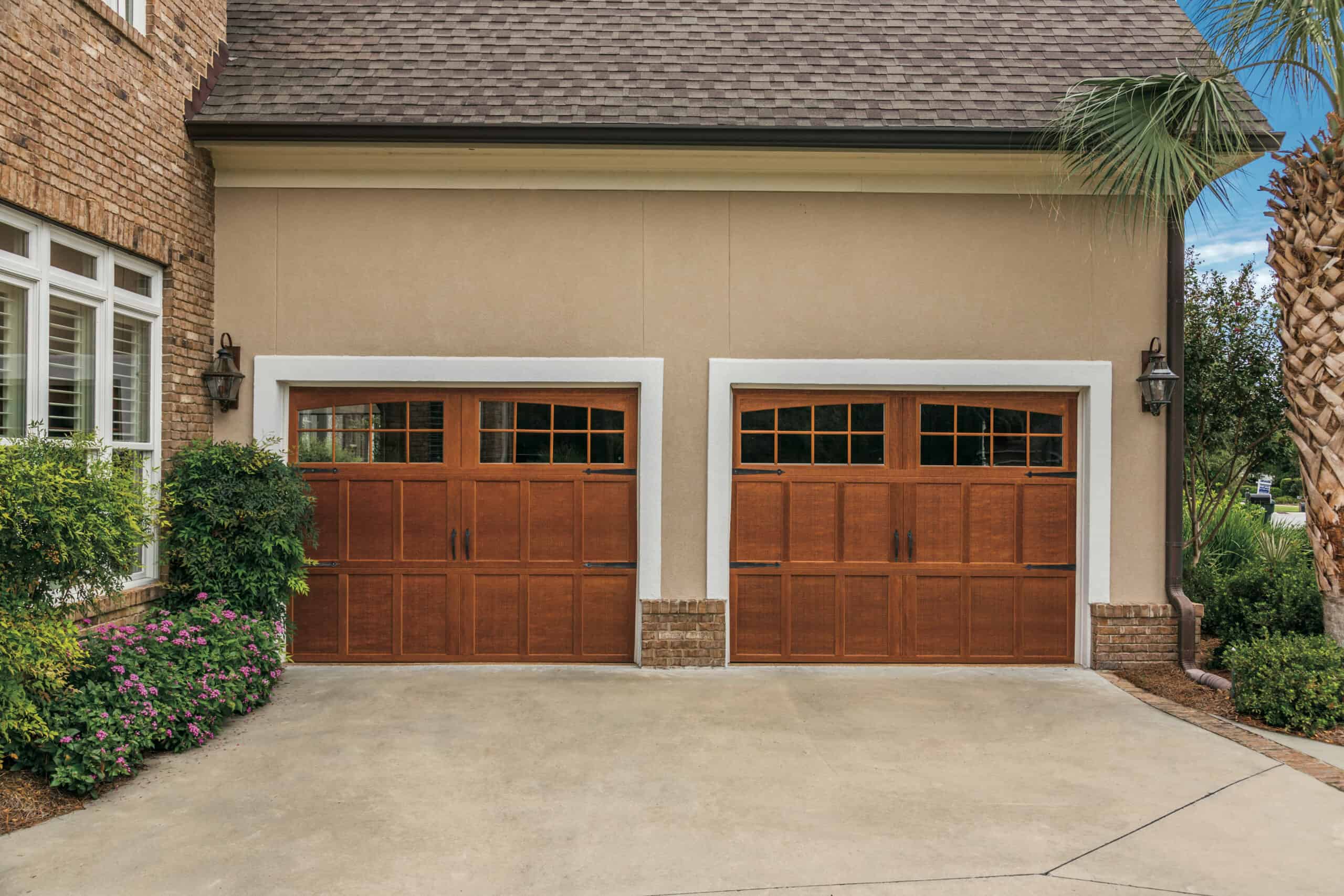

- Carriage house
- Best on colonials, farmhouses and craftsman homes. Modern carriage doors are ordinary sectional doors with cross-buck detail, so you keep normal overhead operation.

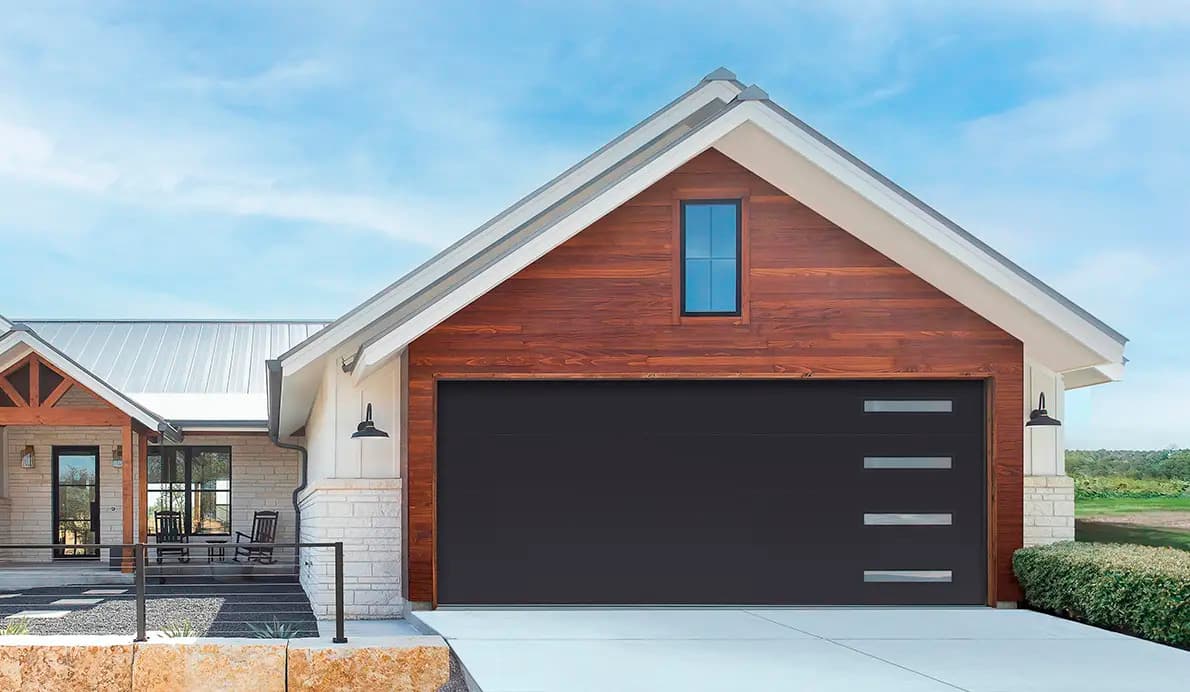

- Contemporary flush
- Clean and flat. Works well on newer builds and ranch homes, and hides dirt and minor dings better than a heavily detailed door.

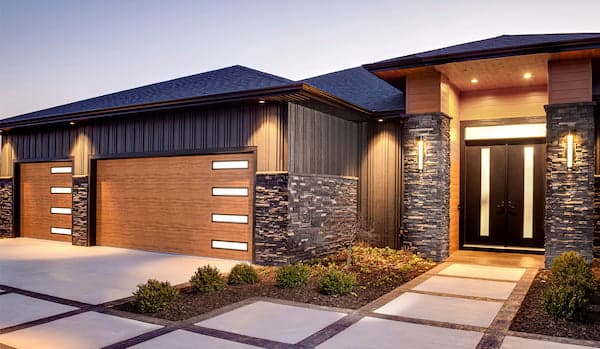

- Modern full-view
- Aluminum and glass throughout. Popular for finished garages, home gyms and shops where daylight matters. Expect a higher price and a longer lead time.
What actually matters in Ohio
Insulation is not just about heat
A polyurethane-core door is structurally stiffer and dramatically quieter than a single-layer door. If the garage is under a bedroom, this is the upgrade people notice most.
Spring cycle rating beats door price
Standard springs are rated around 10,000 cycles. On a door you open four times a day that is roughly seven years. High-cycle springs cost a little more and last far longer.
Bottom seal and threshold
Lima driveways get salted and slabs settle. A good bottom seal plus a threshold seal keeps meltwater and salt out, which is what protects the door from the bottom up.
Wind load
Ohio code expects doors to handle 90+ mph wind loads. Wide double doors on exposed lots benefit from reinforcement struts — we spec these as part of the quote.
Garage door questions we get asked
How much does a new garage door cost in Lima, Ohio?
Most installed residential garage doors in the Lima area land between $1,200 and $3,500. A single-car insulated steel door is at the lower end, while a wide double door in a carriage or full-view style with decorative hardware sits toward the top. The designer on this page gives you a live range as you build, and the written price is confirmed after a free on-site measurement.
What R-value garage door do I need in Ohio?
For an attached or heated garage in Lima we recommend R-12 or better. R-6.5 is an acceptable baseline for a detached garage you do not heat, and non-insulated doors are really only suitable for unheated outbuildings. Higher R-value doors are also noticeably quieter and stronger, because the polyurethane core bonds the steel skins together.
What size garage door do I have?
Measure the width and height of the finished opening, not the door itself. Single-car doors are usually 8 or 9 feet wide, double-car doors 16 or 18 feet, and standard height is 7 feet with 8 feet common where trucks are parked. If your measurement falls between sizes, we confirm it on site at no charge before anything is ordered.
Which garage door material lasts longest in Ohio weather?
Insulated steel is the best all-round choice for our climate — it handles freeze-thaw cycles, resists dents, and needs almost no maintenance. The strongest version is a three-layer door: a steel front skin, an insulated core, and a steel back. The steel back protects the insulation, stiffens the whole section and is noticeably quieter, which is what you want on an attached garage. Fiberglass composite gives a wood-grain look without the upkeep and will not rot. Real wood is the most attractive option but needs refinishing every few years because of our humidity swings.
Do windows in a garage door hurt insulation?
Slightly, yes. Glass has a lower R-value than an insulated panel, so a row of windows reduces the door’s overall thermal performance a little. Insulated double-pane inserts narrow that gap considerably, and for most homeowners the daylight is worth it. If your garage is heated and efficiency is the priority, skipping windows is the better call.
How long does a garage door installation take?
A standard single or double door replacement takes about three to five hours, including removing and hauling away the old door, fitting new tracks and springs, balancing the door and setting up the opener. Custom and full-view doors are ordered in, so allow lead time for the door itself to arrive.
Ready to turn the design into a real door?
We measure free, confirm the price in writing, remove and haul away the old door, and set up the opener before we leave. Serving Lima and the surrounding communities seven days a week.
